K Rain Pro Sport

The ProSport® comes standard with a unique triple nozzle configuration, consisting of a primary nozzle for long distance and two secondary nozzles for mid-range and short-distance coverage. This nozzle design provides superior, close-in water distribution from 43′ to 77′ (13,1 to 23,5 m). Available in a high-speed version, ideal for quick wet downs and dust control.

Features

• Patented Top Arc Set – Allows for wet or dry adjustment in seconds
• Triple Nozzle Configuration – Ensures even distribution of water
• Arc adjustment from 40° to a continuous 360°
• Top Arc Set Degree Markings – Indicates the current watering pattern and simplifies the arc set adjustment
• Arc Memory Clutch – Prevents internal gear damage and returns the rotor to its prior setting automatically if the nozzle turret is forced past the stop
• Patented Reversing Mechanism – Assures continuous reverse and return Heavy Duty Rubber Cover and Mud Guard – Protects against physical injury and allows sprinkler to be installed below grade
• Factory Installed Check Valve – Prevents low head drainage

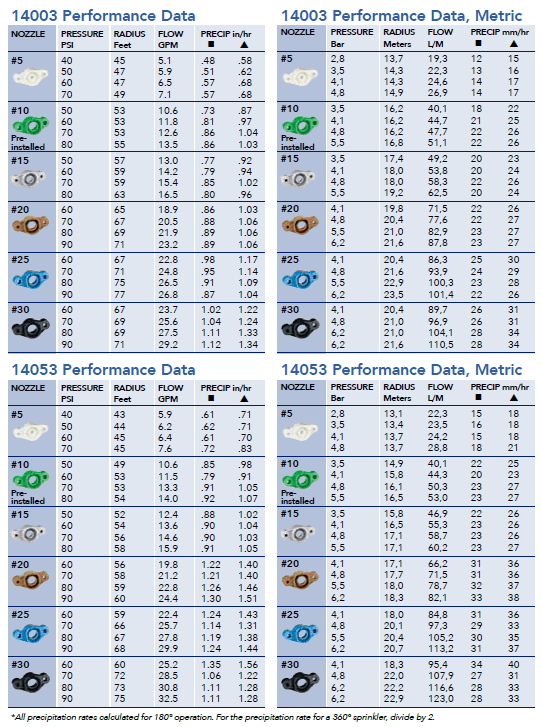

Specifications

• Arc Adjustment Range: 40° to Continuous 360°
• Flow Range: 5.1 – 32.5 GPM (19,3 – 123 LPM)
• Pressure Rating: 40 – 90 PSI (2,8 – 6,2 bar)
• Precipitation Rate: .48 – 1.56 in/hr (12,2 – 39,6 mm/hr) (depending on spacing and nozzle used)
• Recommended Spacing: 40′ – 65′ (12,2 – 19,8 m)
• Radius: 43′ – 77′ (13,1 – 23,5 m)
• Nozzle Trajectory: 26°

Model

• 14003 ProSport® Plastic
• 14003-6INCH ProSport® 6 inch
• 14053 ProSport® High-Speed Plastic
• 14053-6INCH ProSport® High-Speed Plastic 6-inch

Easy Arc Setting

• Arc Selection: 40° to continuous 360°
• Adjust from the left start
